Polinovel wall-mounted solar home battery is an energy Storage Battery pack, which is used together with solar modules, solar inverters and power grid to form a residential energy storage system with off-grid function.
Polinovel Solar Home Storage 7kwh Lifepo4 Lithium Battery Powerwall For Solar System
Product Description
Battery" class="magic-0">Polinove Battery

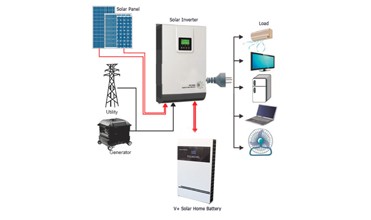

The energy storage battery pack serves as an energy storage unit, and constitutes a small micro grid system with power grid, solar modules, and solar inverter. The energy storage battery pack is a core component of the system.
Product Description
Nominal Voltage | 51.2V |
Nominal Capacity | 138Ah |
Energy Storage | 7000Wh |
Charge Current Range | 1 to 100A |
Max Continuous Discharge Current | 100A |
Peak Discharge Current(3s) | 200A |
Communicate Interface | RS485 / RS232 |
Weight | 90Kg |
Durable advantage
8 years working life
Wide temperature range
Discharge: -20~60℃;
Charge: 0~45℃ .
Safety advantage
Patented screw fasten type;
Patented fasten PCB + BMS double safe protection
Detailed Images

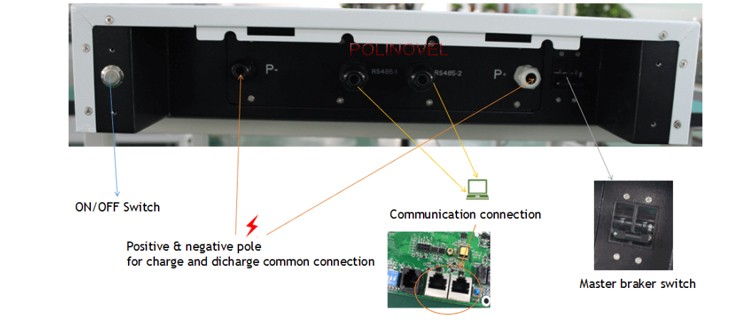

Patented screw fastened type that presents you more safe and reliable using experience.
PCB Connection Between Battery Modules. If a single cell has a short circuit or other problem, the PCB will isolate it, and the whole battery pack will work normally except for a slight drop in voltage.
Insulation Epoxy Board Presenting safe protection.
Nickel Plated Copper Board Fixing Battery Modules.
Power Type of Cable Withstand Higher Current.
PVC Sleeve Protection Wires & Welding Spots. Protect the wires from the abrasion.
Clients & Polinovel
Polinovel Culture
Happy Working, Happy Team !
Outstanding colleagues !
Produce & Test
Produce:
HOW IS QUALITY & PRODUCTION GUARANTEED ? Check out our advanced production facilities and testing facilities .
Polinovel provide both battery cells and battery packs, with the most advance production technology and the highest quality components, to make our lithium batteries unlike Others in the market. Polinovel strictly follow the high-standard production and testing processes, to guarantee lithium batteries are qualified and safe for use in different applications.
Test:
Analog Car Vibration Test of Lithium Battery
Analog the damage caused by bumps in the transportation process, to make sure the resistance of lithium battery for environmental vibrations.
Analog Lithium Battery encountered different road conditions such as bumps, uphills, downhills, turns, sharp turn, etc. Polinovel Lithium Battery is suited to all the above road conditions, not only with stable performance, but also safe and secure.
Waterproof test on lithium battery
Put the batteries in the sink, fill with water and put some fish in.
Multimeter measuring battery voltage and current, battery work normally, and fish is alive, No electric leakage. Polinovel high technology including special processing on lithium battery production crafts to meet the requirements of IP standard in different installation and operating environment. If you want waterproof lithium battery, we are very pleasure to provide you, please let us know your requirements.

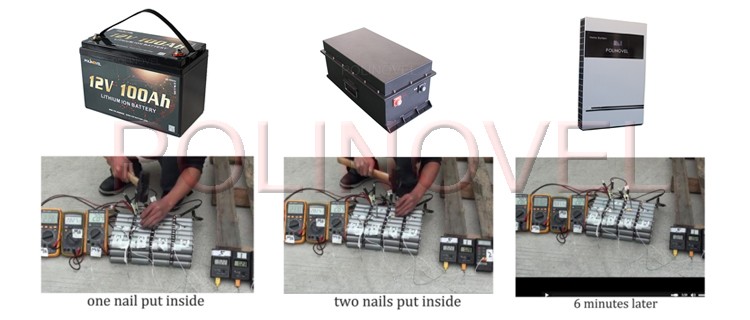

Nail Penetration Test
To approve the safety of our LiFePO4 Batteries, we had a series of environmental tests.The battery pack is penetrated by two nails, after 6 minutes, there is no fire, no explosion during the whole testing process.The stable chemistry of lifepo4 battery proofs to be outstanding safe for use even in extremely tough operating environment.
Temperature Effects on LiFePo4
Most of our customers concerns about the working temperature of our batteries, sometimes, even we know that the common working temperature of different chemistry lithium batteries, they still hope to confirm with the supplier before making an order. Below testing results is about the discharge capacity of 12V 100Ah LiFePo4 battery pack under different temperature.
@1C discharge, our battery remains, 75% discharge @working temperature -10℃; 90% discharge @working temperature 0℃; 98% discharge @working temperture 20℃; 99% discharge @working temperature 40℃
Over-temperature Protection
With over temperature protection, BMS will cut off discharge or charge when battery temperature meet 65℃.
Custom Solutions according to working enviroment
Cold Environment
Pre-charge circuit to heat up battery,
Choose special low temperature cells,
... ...
We have a lot of standard batteries for replacement of lead acid batteries, meanwhile, we also accept OEM/ODM orders. Please feel free to contact us, no matter you are looking for a professional battery solution for your products, or you are just thinking about to know more about lithium battery.
Certifications
POLINOVEL TAKE SAFETY SERIOUSLY
We strive to produce and provide the safest lithium battery to customers. Our lithium battery have been rigorously tested and certified to be safely used in wide applications around the world.
SAFE FOR TRANSPORTATION
Recently, all lithium batteries are required to pass UN38.3 for shipment. We are proud of our batteries are conform to UN38.3 shipping regulations that are safe for air or sea shipping.
APPLY FOR CERTIFICATIONS
Polinovel can also cooperate to help applying for other safety relevant certifications to meet the market demand as per customer's request. Like CE, MSDS, UL, IEC etc.
Certificate Time:
CE ----- 2 weeks MSDS ----- 1 weeks UN38.3 ----- 4 weeks UL/IEC ----- 10 weeks
Certificate Cost:
This contains two costs - Sample & Testing. Both of them are charged basing on exact battery specification. You are welcome to inform us the battery model you are interested for quoting.
Be Your Good Partner
POLINOVEL, A PROFESSIONAL SUPPLIER OF LITHIUM BATTERY !
10+ Years Experience in lithium battery
30+ Countries Experience of export
Polinovel Advantages:
First-class R&D team: Our R&D colleagues are from the TOP3 Lithium battery companies in China. we have rich experience in battery design, electronics, testing and real application. We keep close communication with university and scientific institution. We promise to offer you a professional and high cost-effective solution.
Strict Quality Control: We set strict QC standards include appearance, package, internal structure, electric performance etc. We promise to offer our customers high quality battery.
Customer first culture: 80% of our customers are 5 years above long term partners. We treat our customers as our friends, family members. Every batteries we produced, sold are priceless trust from customers, we cherish it and match word to deed.
Polinovel Target Market:
1. 12 volt Standard Lithium Battery.2. Golf cart, AGV, forklift, boat, etc.low speed mobility battery.
3. Energy storage field (unit capacity < 50kwh).
Q & A:
Q1.: Does Polinovel support door to door shipping? drop ship ?A1.: Yes. If battery unit weight is below 30kg, we delivery it via Air Express. If battery unit weight is above 30kg, we delivery it via sea . If you want to us to help you to make custom clearance, we would like to do that. We support drop ship.
Q2.: Can we do series and parallel connection by ourselves (12 volt battery)?
A2.: Yes. But, we should pay attention to below tips:
a.: Connect the same spec. battery pack. Please don't mix them.
b.: The voltage difference of the connection batteries should be 50mV below.
c.: Support 4 series OR 4 parallel connection. Please don't do series and parallel connection at the same time.
d. If we don't obey the tips, It may cause battery damaged or shorten the battery lifespan.
Q3.: How can I resell lithium batteries well in my market ?
A3.: Do market research, set your focus application field,learn more knowledge about lithium battery. build your own brand. We can work together with you to explode the market.
Q4.: Why Polinovel guys ask me so many questions? I just want to know the price !!
A4.: Sorry for annoying you. But the discharge current, voltage etc. Information is very important for us to produce the correct battery for you. If we produce the battery which can not achieve the real application discharge current, size etc. That will put both of us in a very embarrassing and lose-lose condition. We also have price list, but it is only for your reference. We should confirm the discharge current etc. Information before we produce your orders.
Q5. Does Polinovel battery include BMS? Can we use it for vehicle?
A5: Yes, our battery pack include BMS, you can use it for low speed vehicles.And make sure the discharge current can meet the application request (please refer to Q4) . If you want to use standard vehicle, please inform us, we need to adopt more complex design BMS and different technology solution.
Q6. What is your warranty?
A6: Our standard warranty is 2 years. Our battery lifespan can be used for at least 8 years for normal 1 cycles per day. We have a complete warranty policy documents, please feel free to contact us to get it.
......
Your inquiries or questions are welcome, we will reply you quickly !
